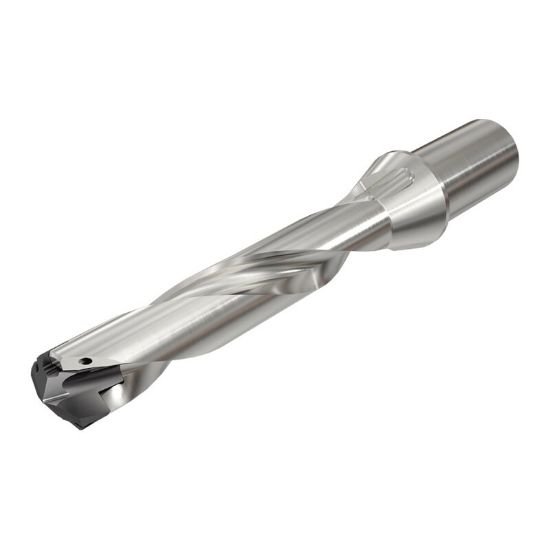

Picture of Iscar DCN 0472-236-063R-5D 0.472" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Iscar DCN 0472-236-063R-5D 0.472" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Part Number: ISC3202629 ISO: DCN 0472-236-063R-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111676
Vendor: Sussex Tool and Supply
$288.28
ISCAR 3202629 0.472" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.9200 124.97MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Type Of Tool Drill
Flute Length 2.4500 62.23MM
Cut Dia Min 0.4724 12.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.4880 12.40MM
