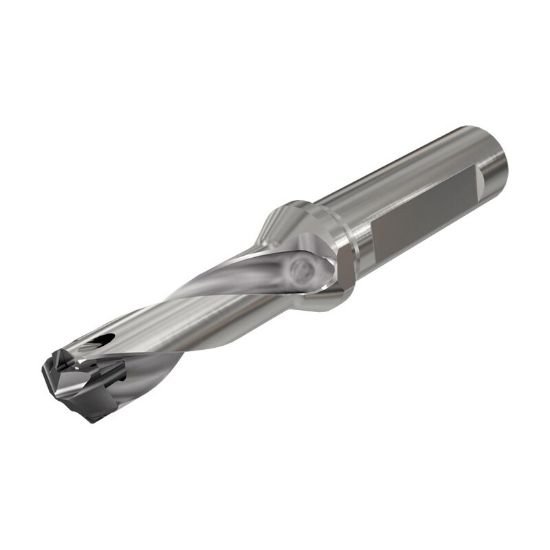

Picture of Iscar DCN 0453-135-063A-3D 0.453" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Iscar DCN 0453-135-063A-3D 0.453" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Part Number: ISC3202455 ISO: DCN 0453-135-063A-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111596
Vendor: Sussex Tool and Supply
$292.70

Description

ISCAR 3202455 0.453" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.9000 99.06MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4528 11.50MM
Flute Length 1.4300 36.32MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.4528 11.50MM
Cut Dia Max 0.4690 11.91MM
Materials & Finish
Tool Material Steel
