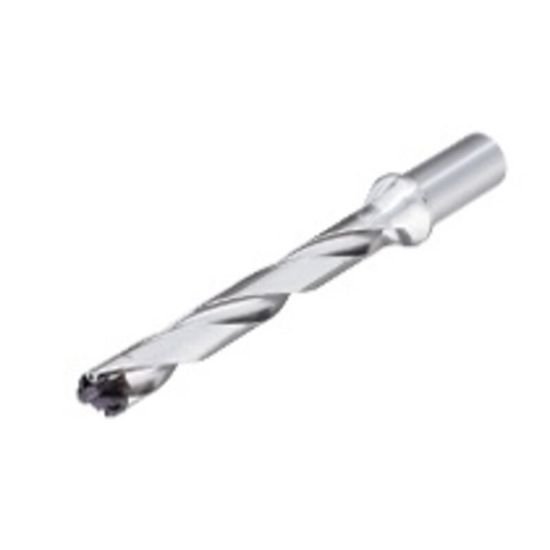

Picture of Iscar DCN 0413-331-063R-8D 0.413" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0413-331-063R-8D 0.413" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3203216 ISO: DCN 0413-331-063R-8D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111869
Vendor: Sussex Tool and Supply
$357.98

Description

ISCAR 3203216 0.413" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 5.8400 148.34MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4133 10.50MM
Flute Length 3.3900 86.11MM
Dia Deep 8.0x Dia
Performance & Capacity
Cut Dia Min 0.4133 10.50MM - Z
Cut Dia Max 0.4290 10.90MM
Materials & Finish
Tool Material Steel
