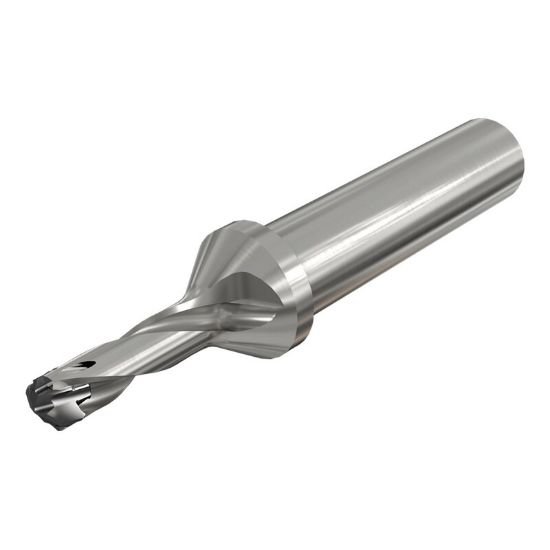

Picture of Iscar DCN 0413-124-063R-3D 0.413" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Iscar DCN 0413-124-063R-3D 0.413" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Part Number: ISC3202783

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111733
Vendor: Sussex Tool and Supply
$263.00
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type Drill
Made In USA No
Cutting Edge Definition Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Tool Material Steel
Machine Side (Toolpost) CYLINDRICAL0.6250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.7700 95.76MM
Shank Or Pilot Diameter 0.6250 15.88MM - 5/8
Family Group Sumocham Chamdrill Line
Coolant Thru Thru Coolant
Mach Side Connection Size 0.6250 15.88MM - 5/8
Tool Diameter 0.4133 10.50MM
Flutes Or Inserts 2
Type of Tool Drill
Flute Length 1.3200 33.53MM
Cut Diameter Min 0.4133 10.50MM - Z
Diameter Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Diameter Max 0.4290 10.90MM
