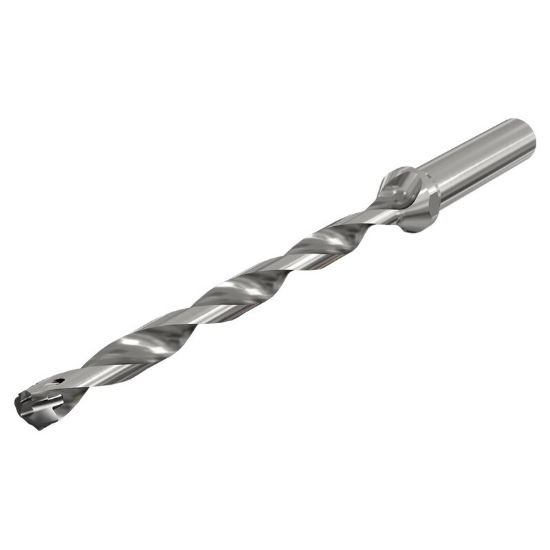

Picture of Iscar DCN 0374-449-050R-12D 0.374" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Iscar DCN 0374-449-050R-12D 0.374" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Part Number: ISC3323749 ISO: DCN 0374-449-050R-12D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112067
Vendor: Sussex Tool and Supply
$383.77
ISCAR 3323749 0.374" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.5000 12.70MM
Overall Length 6.8800 174.75MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3740 9.50MM
Type Of Tool Drill
Flute Length 4.5600 115.82MM
Cut Dia Min 0.3740 9.50MM
Dia Deep 12.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3900 9.91MM
