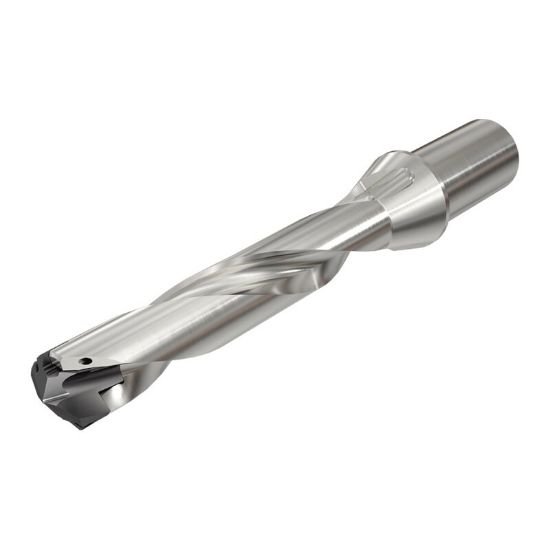

Picture of Iscar DCN 0374-187-050R-5D 0.374" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Iscar DCN 0374-187-050R-5D 0.374" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Part Number: ISC3202621 ISO: DCN 0374-187-050R-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111668
Vendor: Sussex Tool and Supply
$254.98
ISCAR 3202621 0.374" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.2600 108.20MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3740 9.50MM
Type Of Tool Drill
Flute Length 1.9400 49.28MM
Cut Dia Min 0.3740 9.50MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3900 9.91MM
