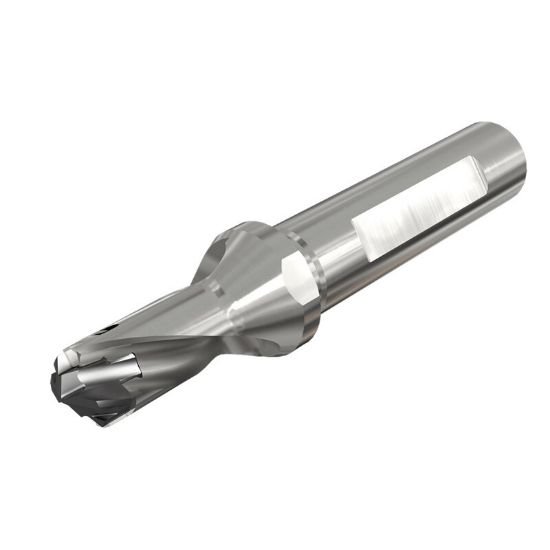

Picture of Iscar DCN 0374-056-050A-1.5D 0.374" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Iscar DCN 0374-056-050A-1.5D 0.374" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Part Number: ISC3203337 ISO: DCN 0374-056-050A-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111900
Vendor: Sussex Tool and Supply
$216.00
ISCAR 3203337 0.374" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.5000 12.70MM
Overall Length 2.9200 74.17MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3740 9.50MM
Type Of Tool Drill
Flute Length 0.6300 16.00MM
Cut Dia Min 0.3740 9.50MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3900 9.91MM
