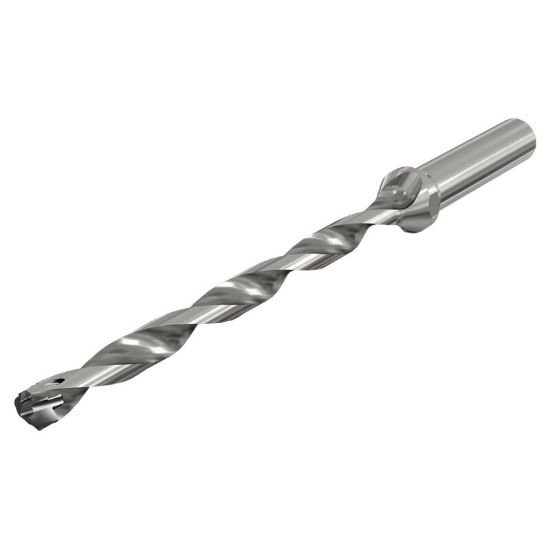

Picture of Iscar DCN 0354-425-050R-12D 0.354" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Iscar DCN 0354-425-050R-12D 0.354" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Part Number: ISC3202825 ISO: DCN 0354-425-050R-12D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111753
Vendor: Sussex Tool and Supply
$409.34

Description

ISCAR 3202825 0.354" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 6.6400 168.66MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3543 9.00MM
Flute Length 4.3200 109.73MM
Dia Deep 12.0x Dia
Performance & Capacity
Cut Dia Min 0.3543 9.00MM
Cut Dia Max 0.3700 9.40MM
Materials & Finish
Tool Material Steel
