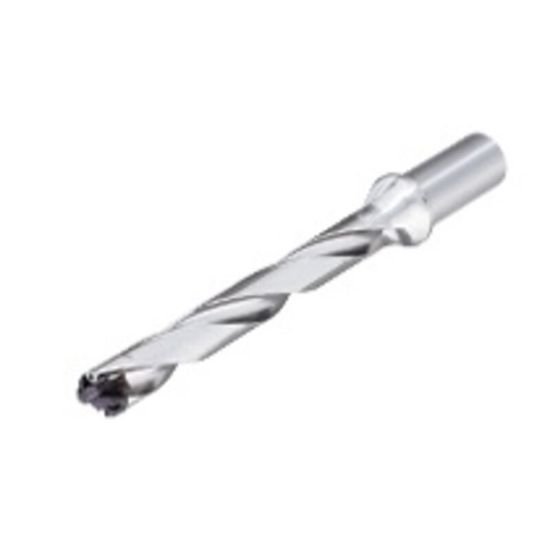

Picture of Iscar DCN 0354-283-050R-8D 0.354" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0354-283-050R-8D 0.354" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3202715 ISO: DCN 0354-283-050R-8D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111711
Vendor: Sussex Tool and Supply
$329.28

Description

ISCAR 3202715 0.354" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 5.2300 132.84MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3543 9.00MM
Flute Length 2.9000 73.66MM
Dia Deep 8.0x Dia
Performance & Capacity
Cut Dia Min 0.3543 9.00MM
Cut Dia Max 0.3700 9.40MM
Materials & Finish
Tool Material Steel
