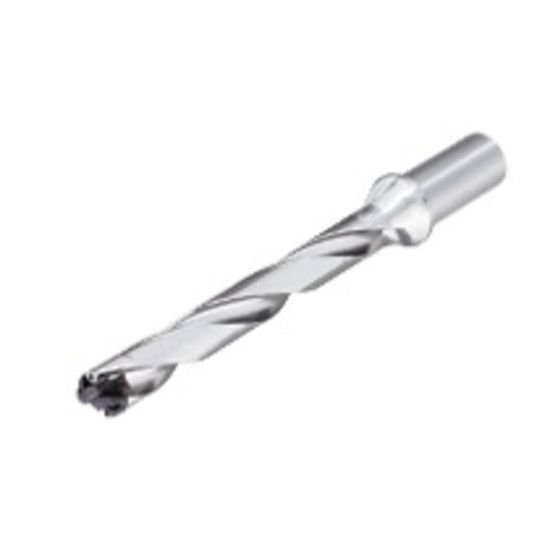

Picture of Iscar DCN 0335-268-050R-8D 0.335" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0335-268-050R-8D 0.335" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3203214 ISO: DCN 0335-268-050R-8D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111867
Vendor: Sussex Tool and Supply
$329.28

Description

ISCAR 3203214 0.335" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 5.0500 128.27MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3346 8.50MM
Flute Length 2.7400 69.60MM
Dia Deep 8.0x Dia
Performance & Capacity
Cut Dia Min 0.3346 8.50MM
Cut Dia Max 0.3500 8.89MM
Materials & Finish
Tool Material Steel
