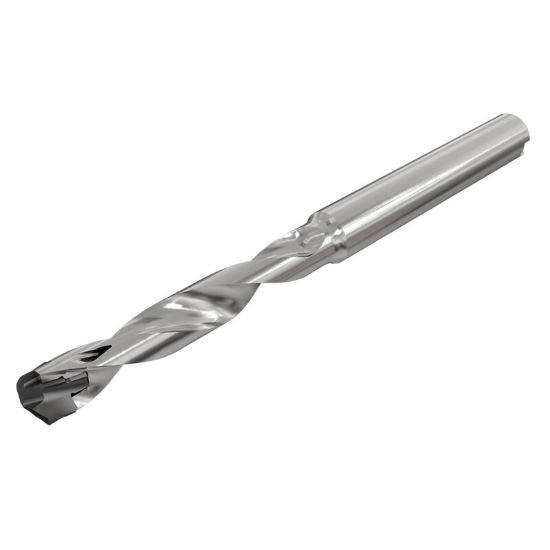

Picture of Iscar DCN 0335-169-0394C-5D 0.335" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Iscar DCN 0335-169-0394C-5D 0.335" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Part Number: ISC3359500 ISO: DCN 0335-169-0394C-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112425
Vendor: Sussex Tool and Supply
$305.57

Description

ISCAR 3359500 0.335" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.6970 93.90MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 1
Tool Dia 0.3346 8.50MM
Flute Length 1.6730 42.49MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.3346 8.50MM
Cut Dia Max 0.3500 8.89MM
Materials & Finish
Tool Material Steel
