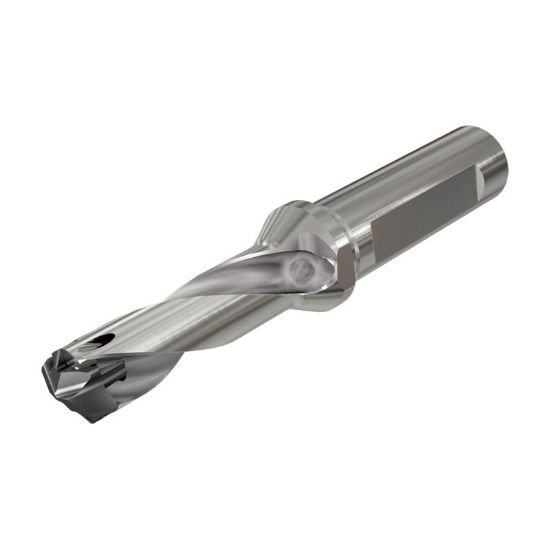

Picture of Iscar DCN 0315-094-050A-3D 0.315" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Iscar DCN 0315-094-050A-3D 0.315" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Part Number: ISC3202290 ISO: DCN 0315-094-050A-3D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111576
Vendor: Sussex Tool and Supply
$258.05

Description

ISCAR 3202290 0.315" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.3200 84.33MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Flute Length 1.0000 25.40MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.3150 8.00MM
Cut Dia Max 0.3310 8.41MM
Materials & Finish
Tool Material Steel
