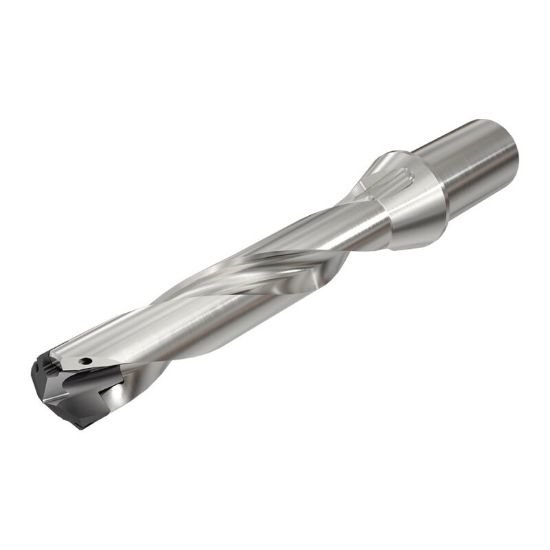

Picture of Iscar DCN 0275-138-050R-5D 0.275" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Iscar DCN 0275-138-050R-5D 0.275" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Part Number: ISC3202944 ISO: DCN 0275-138-050R-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111775
Vendor: Sussex Tool and Supply
$271.97

Description

ISCAR 3202944 0.275" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.7300 94.74MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.2756 7.00MM
Flute Length 1.4200 36.07MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.2756 7.00MM
Cut Dia Max 0.2910 7.39MM
Materials & Finish
Tool Material Steel
