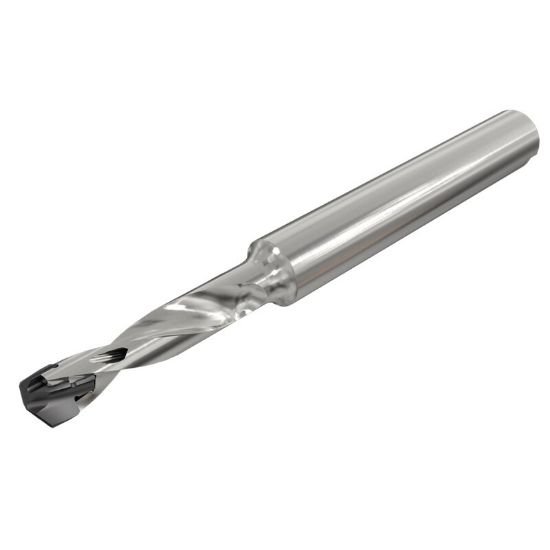

Picture of Iscar DCN 0256-079-0315C-3D 0.256" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Iscar DCN 0256-079-0315C-3D 0.256" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Part Number: ISC3359476 ISO: DCN 0256-079-0315C-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112416
Vendor: Sussex Tool and Supply
$241.93
ISCAR 3359476 0.256" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.5910 65.81MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 1
Tool Dia 0.2559 6.50MM
Type Of Tool Drill
Flute Length 0.7680 19.51MM
Cut Dia Min 0.2559 6.50MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.2720 6.91MM
