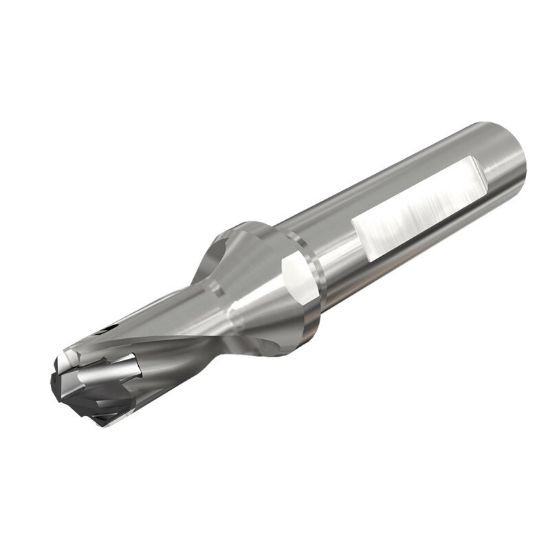

Picture of Iscar DCN 0236-035-050A-1.5D 0.236" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Iscar DCN 0236-035-050A-1.5D 0.236" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Part Number: ISC3203287 ISO: DCN 0236-035-050A-1.5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111892
Vendor: Sussex Tool and Supply
$230.40

Description

ISCAR 3203287 0.236" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 2.7600 70.10MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.2362 6.00MM
Flute Length 0.3900 9.91MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 0.2362 6.00MM
Cut Dia Max 0.2520 6.40MM
Materials & Finish
Tool Material Steel
