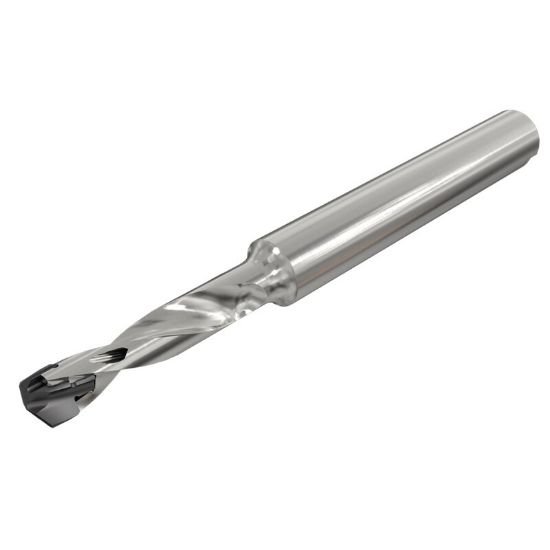

Picture of Iscar DCN 0216-067-0236C-3D 0.217" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Iscar DCN 0216-067-0236C-3D 0.217" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Part Number: ISC3346491 ISO: DCN 0216-067-0236C-3D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112110
Vendor: Sussex Tool and Supply
$258.05

Description

ISCAR 3346491 0.217" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 2.4860 63.14MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2165 5.50MM
Flute Length 0.6500 16.51MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.2165 5.50MM
Cut Dia Max 0.2320 5.89MM
Materials & Finish
Tool Material Steel
