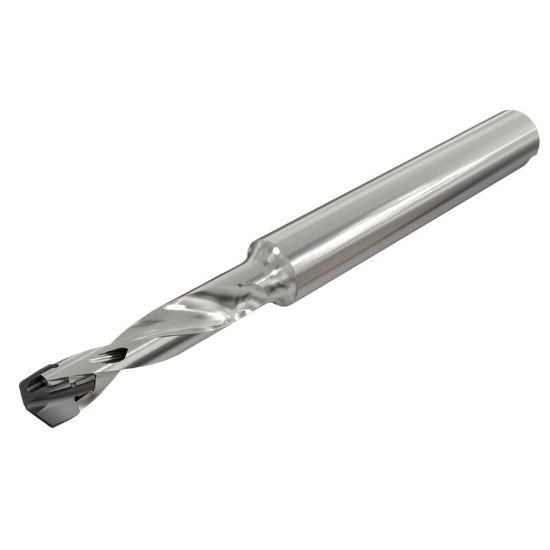

Picture of Iscar DCN 0157-047-0236C-3D 0.157" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Iscar DCN 0157-047-0236C-3D 0.157" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Part Number: ISC3346594 ISO: DCN 0157-047-0236C-3D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112111
Vendor: Sussex Tool and Supply
$258.05
This product has a minimum quantity of 2

Description

ISCAR 3346594 0.157" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 2.2720 57.71MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1575 4.00MM
Flute Length 0.4720 11.99MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.1574 4.00MM
Cut Dia Max 0.1730 4.39MM
Materials & Finish
Tool Material Steel
