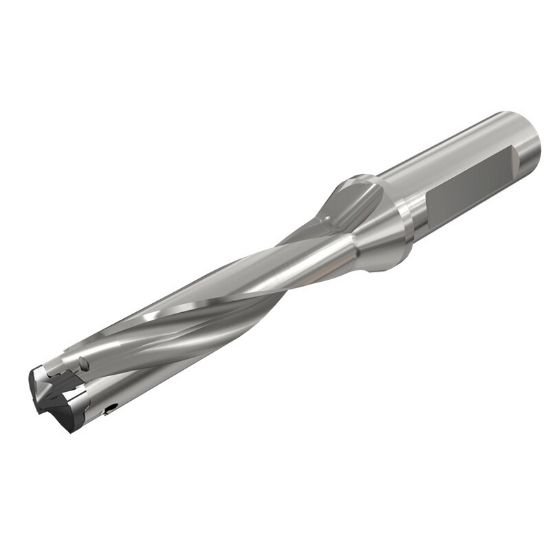

Picture of Iscar DCM 0984-492-100A-5D .984" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0984-492-100A-5D .984" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200693 ISO: DCM 0984-492-100A-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111365
Vendor: Sussex Tool and Supply
$564.58

Description

ISCAR 3200693 .984" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 8.4600 214.88MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.9844 25.00MM - 63/64
Flute Length 4.9200 124.97MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.9843 25.00MM - 63/64
Cut Dia Max 1.0200 25.91MM
Materials & Finish
Tool Material Steel
