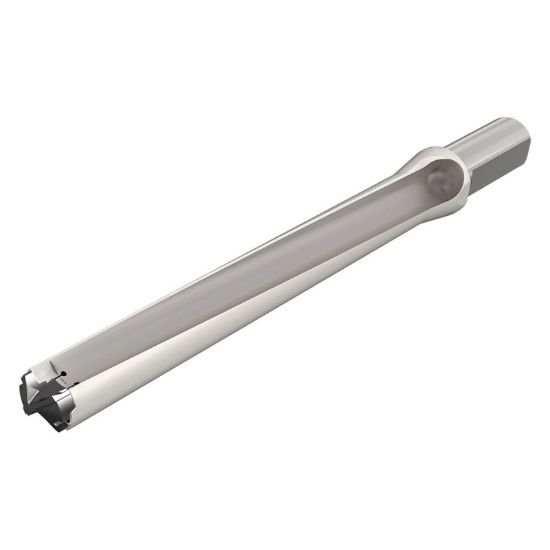

Picture of Iscar DCM 0945-756-100A-8D 0.945 Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0945-756-100A-8D 0.945 Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3201415 ISO: DCM 0945-756-100A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111476
Vendor: Sussex Tool and Supply
$615.52
ISCAR 3201415 0.945 Indexable Head Drills with One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 11.0300 280.16MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.9449 24.00MM
Type Of Tool Drill
Flute Length 7.5600 192.02MM
Cut Dia Min 0.9449 24.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.9800 24.89MM
