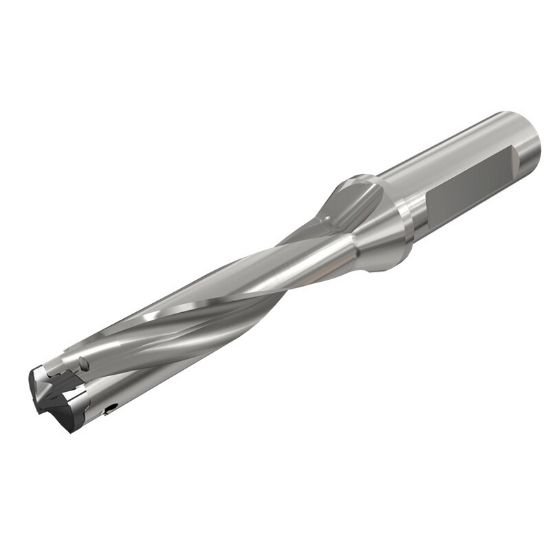

Picture of Iscar DCM 0945-472-100A-5D 0.98" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0945-472-100A-5D 0.98" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200692 ISO: DCM 0945-472-100A-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111364
Vendor: Sussex Tool and Supply
$505.25

Description

ISCAR 3200692 0.98" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 8.1700 207.52MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.9449 24.00MM
Flute Length 4.7200 119.89MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.9449 24.00MM
Cut Dia Max 0.9800 24.89MM
Materials & Finish
Tool Material Steel
