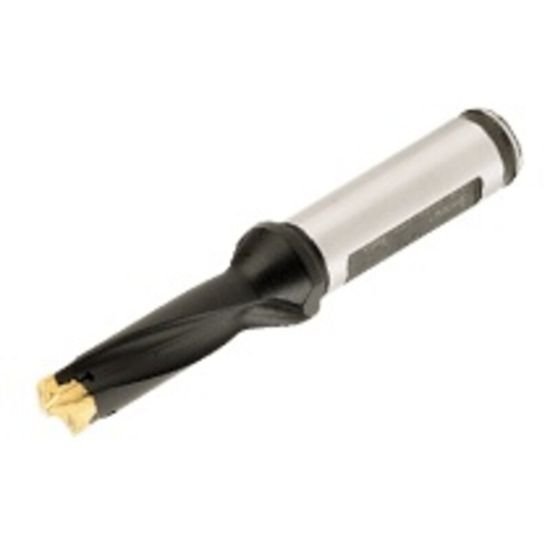

Picture of Iscar DCM 0906-272-100A-3D 0.906" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD

Iscar DCM 0906-272-100A-3D 0.906" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD

Part Number: ISC3200686 ISO: DCM 0906-272-100A-3D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111358
Vendor: Sussex Tool and Supply
$429.12

Description

ISCAR 3200686 0.906" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 6.1200 155.45MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.9063 23.02MM - 29/32
Flute Length 2.7100 68.83MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.9062 23.02MM - 29/32
Cut Dia Max 0.9410 23.90MM
Materials & Finish
Tool Material Steel
