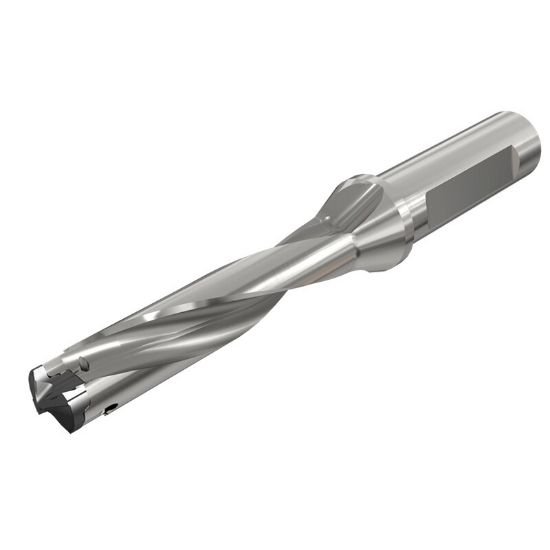

Picture of Iscar DCM 0866-433-100A-5D 0.901" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0866-433-100A-5D 0.901" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200690 ISO: DCM 0866-433-100A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111362
Vendor: Sussex Tool and Supply
$455.14
ISCAR 3200690 0.901" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 7.6700 194.82MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8661 22.00MM
Type Of Tool Drill
Flute Length 4.3300 109.98MM
Cut Dia Min 0.8661 22.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.9010 22.89MM
