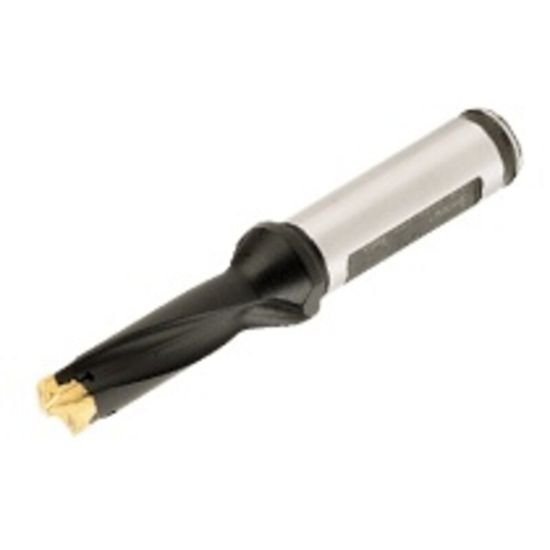

Picture of Iscar DCM 0866-260-100A-3D 0.901" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD

Iscar DCM 0866-260-100A-3D 0.901" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD

Part Number: ISC3200685 ISO: DCM 0866-260-100A-3D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111357
Vendor: Sussex Tool and Supply
$411.36

Description

ISCAR 3200685 0.901" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 5.9400 150.88MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8661 22.00MM
Flute Length 2.6000 66.04MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.8661 22.00MM
Cut Dia Max 0.9010 22.89MM
Materials & Finish
Tool Material Steel
