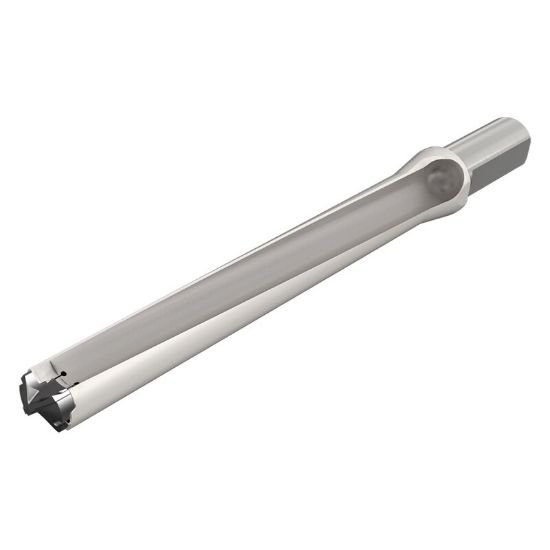

Picture of Iscar DCM 0827-662-100A-8D 0.827 Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0827-662-100A-8D 0.827 Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3201412

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111473
Vendor: Sussex Tool and Supply
$0.00
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.0000 25.40MM
Cutter Type Drill
Overall Length 9.9200 251.97MM
Machine Side (Toolpost) WELDON1.0000, BBAR1.0000
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State TEXAS
Type Indexable Drill Single Insert
Family Group Cham-Drill
Tool Material Steel
Mach Side Connection Size 1.0000 25.40MM
Tool Diameter 0.8268 21.00MM
Cut Diameter Min 0.8268 21.00MM
Coolant Thru Thru Coolant
Cut Diameter Max 0.8620 21.89MM
Drill Type Indexable Drill
Made In USA No
Flute Length 6.6200 168.15MM
Diameter Deep 8.0x Dia
