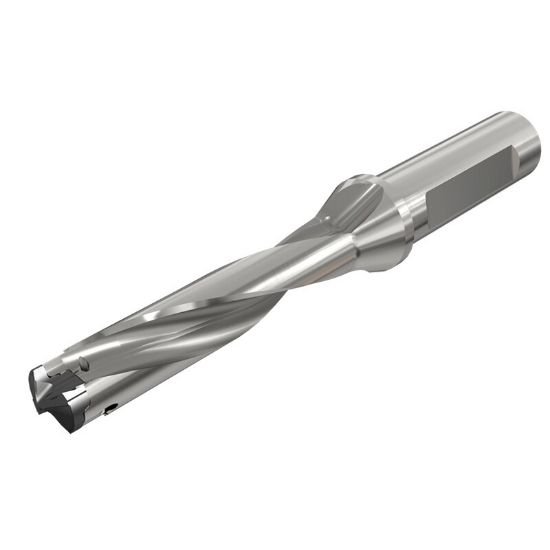

Picture of Iscar DCM 0827-413-100A-5D 0.862" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0827-413-100A-5D 0.862" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200689 ISO: DCM 0827-413-100A-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111361
Vendor: Sussex Tool and Supply
$396.48

Description

ISCAR 3200689 0.862" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 7.4300 188.72MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8268 21.00MM
Flute Length 4.1300 104.90MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.8268 21.00MM
Cut Dia Max 0.8620 21.89MM
Materials & Finish
Tool Material Steel
