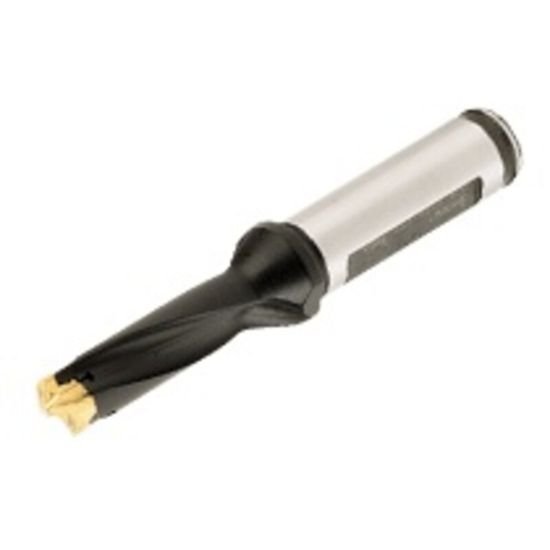

Picture of Iscar DCM 0827-248-100A-3D 0.862" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD

Iscar DCM 0827-248-100A-3D 0.862" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD

Part Number: ISC3200684 ISO: DCM 0827-248-100A-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111356
Vendor: Sussex Tool and Supply
$337.15

Description

ISCAR 3200684 0.862" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 5.7700 146.56MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8268 21.00MM
Flute Length 2.4800 62.99MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.8268 21.00MM
Cut Dia Max 0.8620 21.89MM
Materials & Finish
Tool Material Steel
