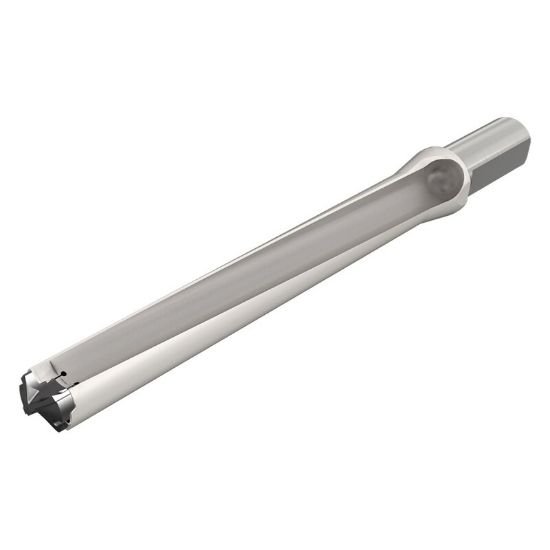

Picture of Iscar DCM 0709-567-100A-8D 0.709" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0709-567-100A-8D 0.709" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3200965 ISO: DCM 0709-567-100A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111376
Vendor: Sussex Tool and Supply
$419.95
ISCAR 3200965 0.709" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 8.8200 224.03MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7087 18.00MM
Type Of Tool Drill
Flute Length 5.6700 144.02MM
Cut Dia Min 0.7087 18.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.7440 18.90MM
