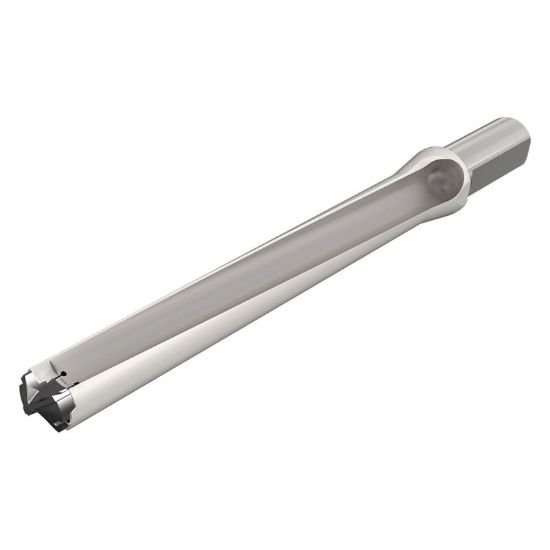

Picture of Iscar DCM 0669-535-075A-8D 0.669" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0669-535-075A-8D 0.669" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3200964 ISO: DCM 0669-535-075A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111375
Vendor: Sussex Tool and Supply
$419.95
ISCAR 3200964 0.669" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 8.2300 209.04MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6693 17.00MM
Type Of Tool Drill
Flute Length 5.3500 135.89MM
Cut Dia Min 0.6692 17.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.7050 17.91MM
