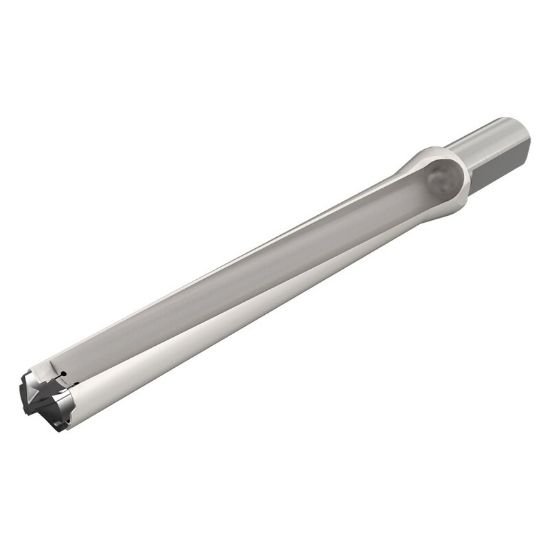

Picture of Iscar DCM 0630-504-075A-8D 0.665" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0630-504-075A-8D 0.665" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3200963 ISO: DCM 0630-504-075A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111374
Vendor: Sussex Tool and Supply
$414.37
ISCAR 3200963 0.665" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 7.6800 195.07MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Type Of Tool Drill
Flute Length 5.0400 128.02MM
Cut Dia Min 0.6299 16.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.6650 16.89MM
