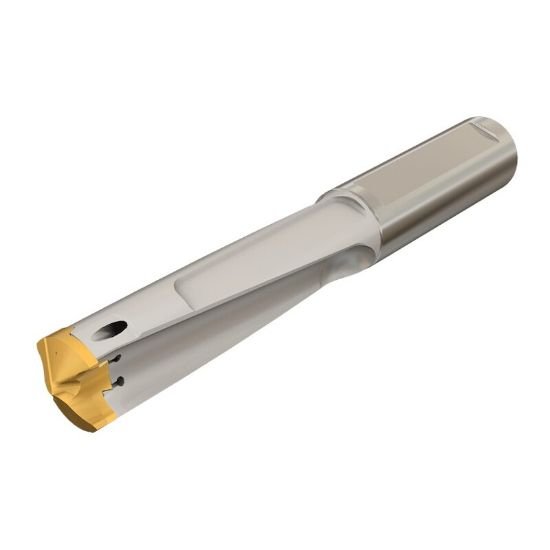

Picture of Iscar DCM 0591-205-059B-3.5D 0.591" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders

Iscar DCM 0591-205-059B-3.5D 0.591" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders

Part Number: ISC3200983 ISO: DCM 0591-205-059B-3.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111394
Vendor: Sussex Tool and Supply
$278.10
ISCAR 3200983 0.591" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.5906 15.00MM
Overall Length 4.2550 108.08MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5906 15.00MM
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Type Of Tool Drill
Flute Length 2.0470 51.99MM
Cut Dia Min 0.5906 15.00MM
Dia Deep 3.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.6260 15.90MM
