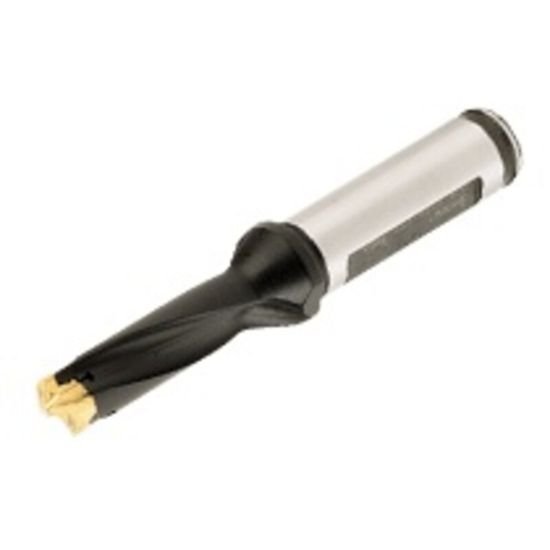

Picture of Iscar DCM 0591-177-075A-3D .591" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD

Iscar DCM 0591-177-075A-3D .591" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD

Part Number: ISC3200456 ISO: DCM 0591-177-075A-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111316
Vendor: Sussex Tool and Supply
$286.75

Description

ISCAR 3200456 .591" Indexable Head Drills with One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.5500 115.57MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Flute Length 1.7700 44.96MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.5906 15.00MM
Cut Dia Max 0.6260 15.90MM
Materials & Finish
Tool Material Steel
