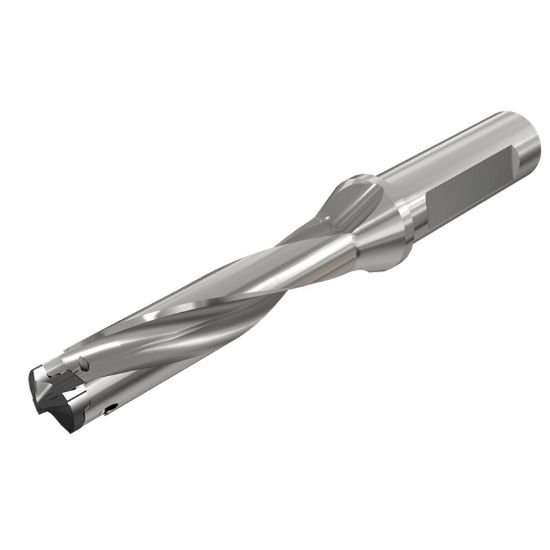

Picture of Iscar DCM 0551-275-063A-5D 0.551" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0551-275-063A-5D 0.551" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200458 ISO: DCM 0551-275-063A-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111317
Vendor: Sussex Tool and Supply
$317.38

Description

ISCAR 3200458 0.551" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 5.4000 137.16MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Flute Length 2.7500 69.85MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.5512 14.00MM
Cut Dia Max 0.5670 14.40MM
Materials & Finish
Tool Material Steel
