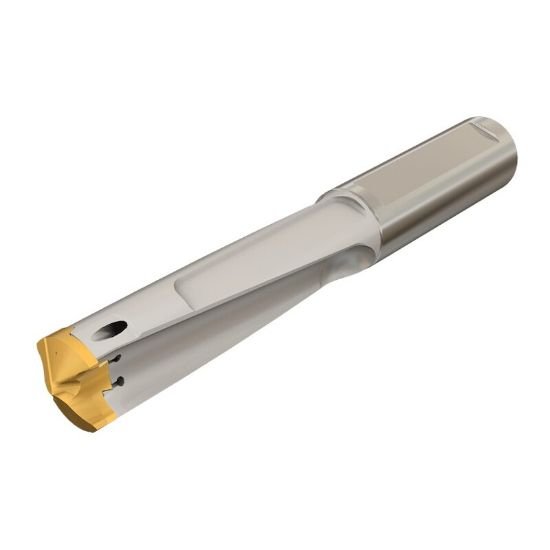

Picture of Iscar DCM 0551-189-055B-3.5D 0.551" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders

Iscar DCM 0551-189-055B-3.5D 0.551" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders

Part Number: ISC3200981 ISO: DCM 0551-189-055B-3.5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111392
Vendor: Sussex Tool and Supply
$273.89

Description

ISCAR 3200981 0.551" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.1020 104.19MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Flute Length 1.8900 48.01MM
Dia Deep 3.5.0x Dia
Performance & Capacity
Cut Dia Min 0.5512 14.00MM
Cut Dia Max 0.5670 14.40MM
Materials & Finish
Tool Material Steel
