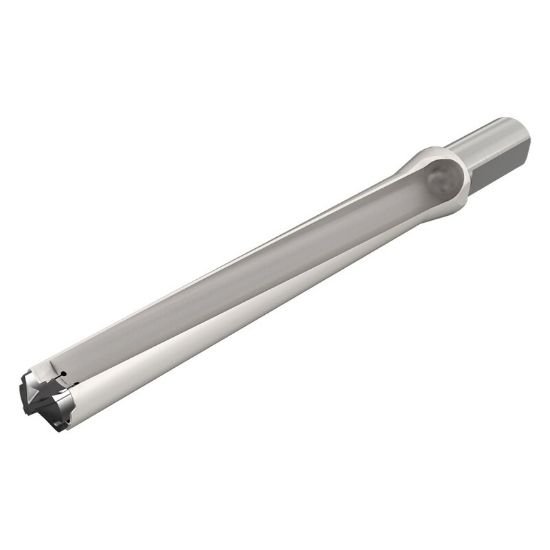

Picture of Iscar DCM 0512-409-063A-8D 0.512" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0512-409-063A-8D 0.512" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3200960 ISO: DCM 0512-409-063A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111371
Vendor: Sussex Tool and Supply
$386.55
ISCAR 3200960 0.512" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 6.6300 168.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5118 13.00MM
Type Of Tool Drill
Flute Length 4.0900 103.89MM
Cut Dia Min 0.5118 13.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5470 13.89MM
