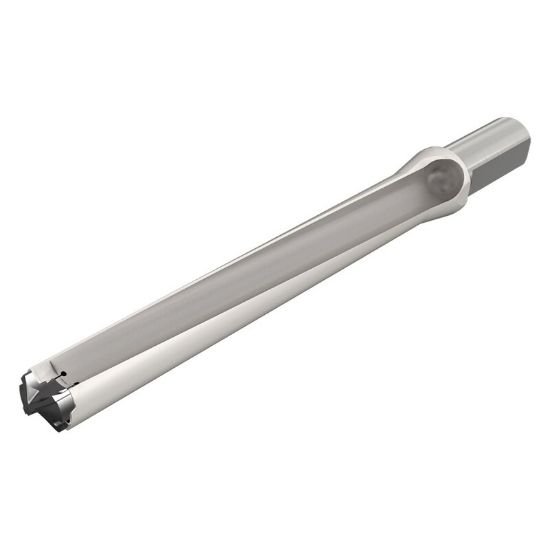

Picture of Iscar DCM 0472-378-063A-8D 0.472" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0472-378-063A-8D 0.472" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3200959 ISO: DCM 0472-378-063A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111370
Vendor: Sussex Tool and Supply
$360.64
ISCAR 3200959 0.472" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 6.3100 160.27MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Type Of Tool Drill
Flute Length 3.7800 96.01MM
Cut Dia Min 0.4724 12.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5080 12.90MM
