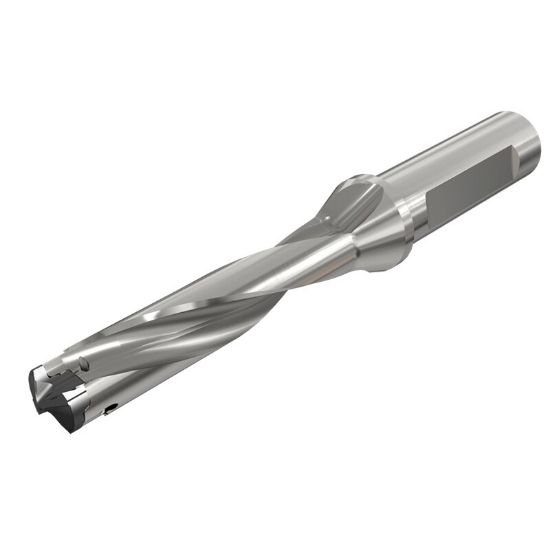

Picture of Iscar DCM 0472-236-063A-5D 0.472" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0472-236-063A-5D 0.472" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200476 ISO: DCM 0472-236-063A-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111320
Vendor: Sussex Tool and Supply
$296.64

Description

ISCAR 3200476 0.472" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.8900 124.21MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Flute Length 2.3600 59.94MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.4724 12.00MM
Cut Dia Max 0.4880 12.40MM
Materials & Finish
Tool Material Steel
