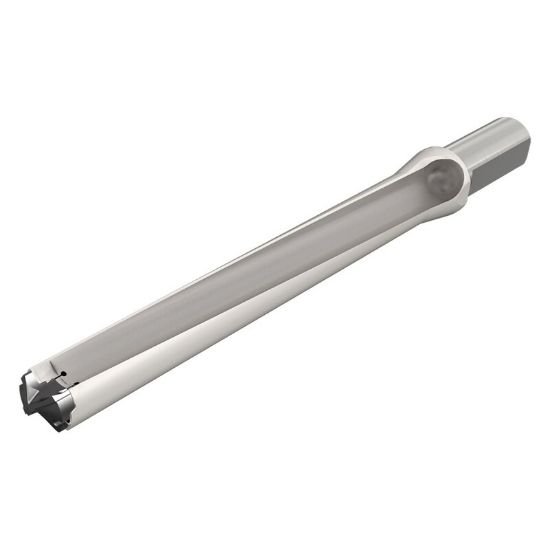

Picture of Iscar DCM 0433-346-063A-8D 0.433" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0433-346-063A-8D 0.433" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3200958 ISO: DCM 0433-346-063A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111369
Vendor: Sussex Tool and Supply
$360.64
ISCAR 3200958 0.433" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.9500 151.13MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4331 11.00MM
Type Of Tool Drill
Flute Length 3.4600 87.88MM
Cut Dia Min 0.4331 11.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.4690 11.91MM
