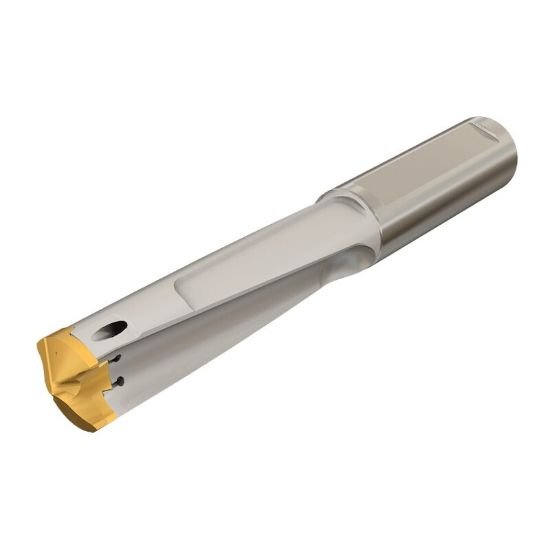

Picture of Iscar DCM 0413-134-043B-3.5D 0.429" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders

Iscar DCM 0413-134-043B-3.5D 0.429" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders

Part Number: ISC3200974 ISO: DCM 0413-134-043B-3.5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111385
Vendor: Sussex Tool and Supply
$258.05

Description

ISCAR 3200974 0.429" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.4570 87.81MM
Shank/Pilot Dia 0.4330 11.00MM
Flutes/Inserts 2
Tool Dia 0.4133 10.50MM
Flute Length 1.3390 34.01MM
Dia Deep 3.5.0x Dia
Performance & Capacity
Cut Dia Min 0.4133 10.50MM - Z
Cut Dia Max 0.4290 10.90MM
Materials & Finish
Tool Material Steel
