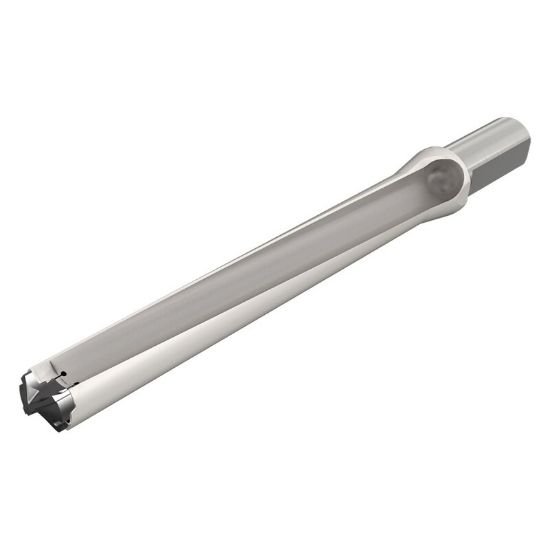

Picture of Iscar DCM 0394-315-063A-8D 0.394" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Iscar DCM 0394-315-063A-8D 0.394" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD

Part Number: ISC3200957 ISO: DCM 0394-315-063A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111368
Vendor: Sussex Tool and Supply
$350.38
ISCAR 3200957 0.394" Indexable Head Drills with One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.5900 141.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.3937 10.00MM
Type Of Tool Drill
Flute Length 3.1500 80.01MM
Cut Dia Min 0.3937 10.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.4290 10.90MM
