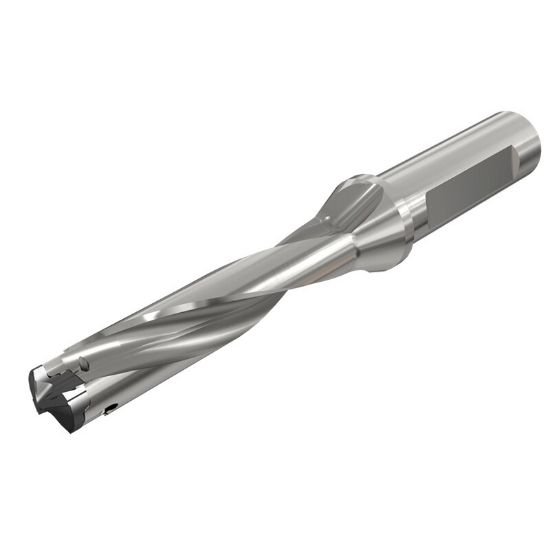

Picture of Iscar DCM 0374-187-050A-5D 0.375" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0374-187-050A-5D 0.375" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200651 ISO: DCM 0374-187-050A-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111355
Vendor: Sussex Tool and Supply
$263.04

Description

ISCAR 3200651 0.375" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.1400 105.16MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3740 9.50MM
Flute Length 1.8500 46.99MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.3740 9.50MM
Cut Dia Max 0.3900 9.91MM
Materials & Finish
Tool Material Steel
