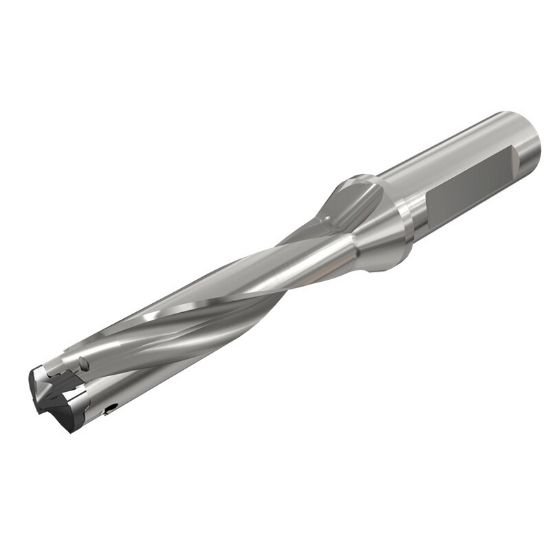

Picture of Iscar DCM 0335-167-050A-5D 0.35" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0335-167-050A-5D 0.35" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200643 ISO: DCM 0335-167-050A-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111351
Vendor: Sussex Tool and Supply
$263.04

Description

ISCAR 3200643 0.35" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.9000 99.06MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3346 8.50MM
Flute Length 1.6500 41.91MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.3346 8.50MM
Cut Dia Max 0.3500 8.89MM
Materials & Finish
Tool Material Steel
