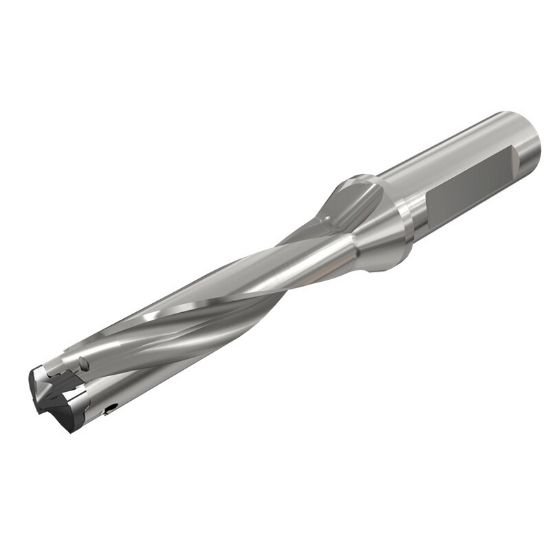

Picture of Iscar DCM 0315-157-050A-5D 0.331" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0315-157-050A-5D 0.331" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200639 ISO: DCM 0315-157-050A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111349
Vendor: Sussex Tool and Supply
$246.60
ISCAR 3200639 0.331" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.7700 95.76MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Type Of Tool Drill
Flute Length 1.5700 39.88MM
Cut Dia Min 0.3150 8.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3310 8.41MM
