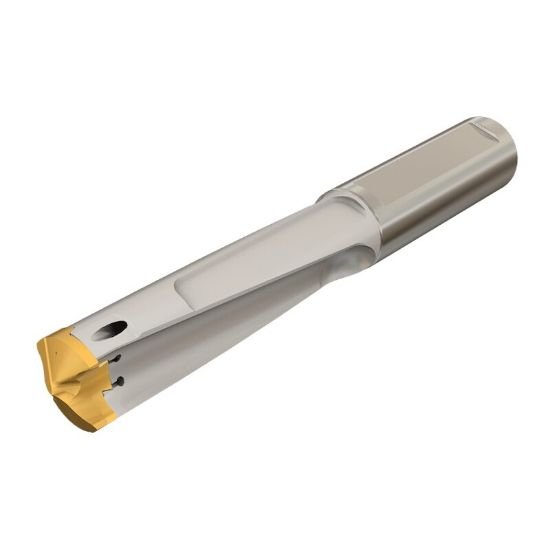

Picture of Iscar DCM 0315-110-031B-3.5D 0.331" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders

Iscar DCM 0315-110-031B-3.5D 0.331" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders

Part Number: ISC3200969 ISO: DCM 0315-110-031B-3.5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111380
Vendor: Sussex Tool and Supply
$231.36

Description

ISCAR 3200969 0.331" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3.5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.1060 78.89MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Flute Length 1.1020 27.99MM
Dia Deep 3.5.0x Dia
Performance & Capacity
Cut Dia Min 0.3150 8.00MM
Cut Dia Max 0.3310 8.41MM
Materials & Finish
Tool Material Steel
