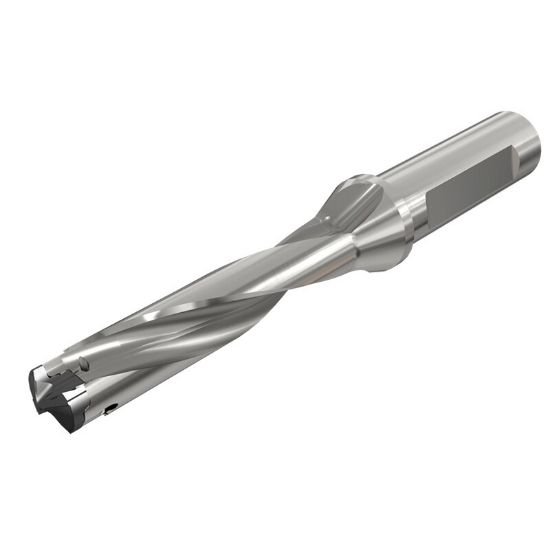

Picture of Iscar DCM 0295-148-050A-5D 0.295" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Iscar DCM 0295-148-050A-5D 0.295" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD

Part Number: ISC3200763 ISO: DCM 0295-148-050A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111367
Vendor: Sussex Tool and Supply
$246.60
ISCAR 3200763 0.295" Indexable Head Drills with One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.7800 96.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.2953 7.50MM
Type Of Tool Drill
Flute Length 1.4600 37.08MM
Cut Dia Min 0.2953 7.50MM - M
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3110 7.90MM
