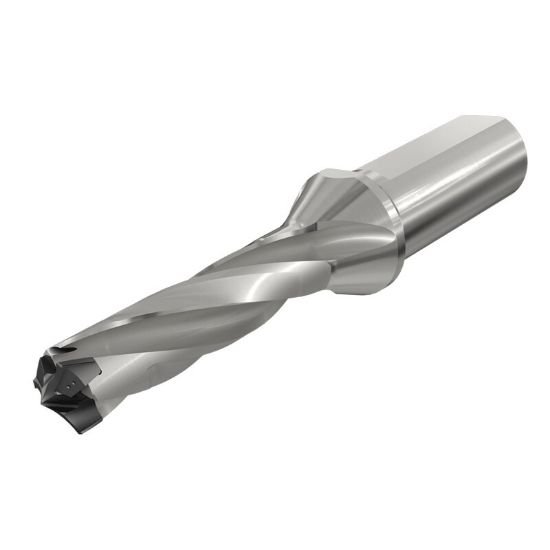

Picture of Iscar D3N 0945-283-125A-3D 0.945" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Iscar D3N 0945-283-125A-3D 0.945" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Part Number: ISC3346983 ISO: D3N 0945-283-125A-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112144
Vendor: Sussex Tool and Supply
$620.20
ISCAR 3346983 0.945" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 7.1480 181.56MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 0.9449 24.00MM
Type Of Tool Drill
Flute Length 3.3700 85.60MM
Cut Dia Min 0.9449 24.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.9800 24.89MM
