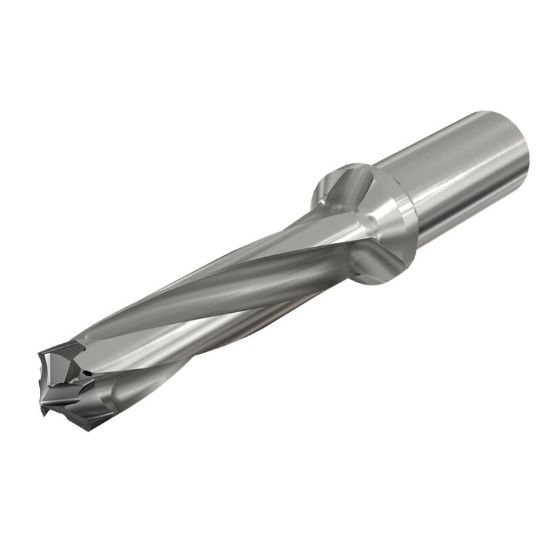

Picture of Iscar D3N 0906-453-125R-5D 0.906" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 5xD

Iscar D3N 0906-453-125R-5D 0.906" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 5xD

Part Number: ISC3363079 ISO: D3N 0906-453-125R-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112490
Vendor: Sussex Tool and Supply
$666.00
ISCAR 3363079 0.906" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 8.7600 222.50MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 1
Tool Dia 0.9063 23.02MM - 29/32
Type Of Tool Drill
Flute Length 5.0400 128.02MM
Cut Dia Min 0.9062 23.02MM - 29/32
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.9410 23.90MM
