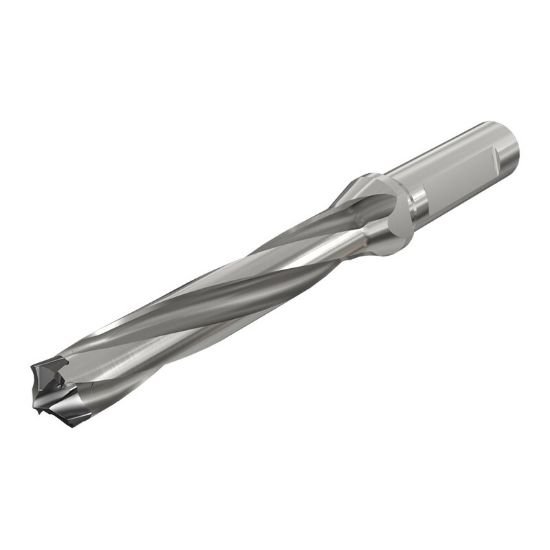

Picture of Iscar D3N 0866-433-100A-5D 0.866" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar D3N 0866-433-100A-5D 0.866" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3346980 ISO: D3N 0866-433-100A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112141
Vendor: Sussex Tool and Supply
$667.00
ISCAR 3346980 0.866" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 8.3320 211.63MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 0.8661 22.00MM
Type Of Tool Drill
Flute Length 4.8300 122.68MM
Cut Dia Min 0.8661 22.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.9020 22.91MM
