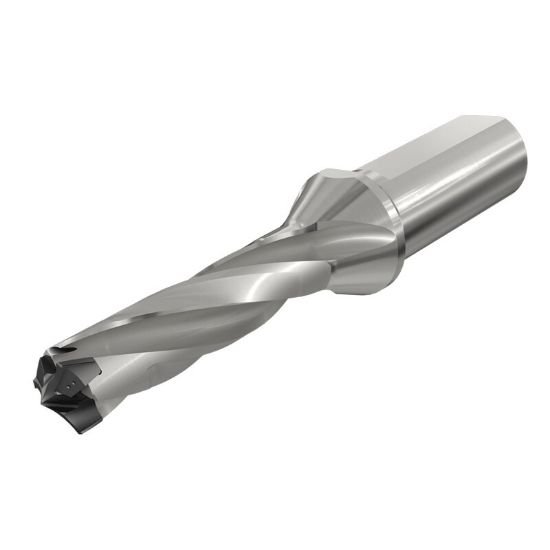

Picture of Iscar D3N 0827-248-100A-3D 0.827" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Iscar D3N 0827-248-100A-3D 0.827" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Part Number: ISC3346977 ISO: D3N 0827-248-100A-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112138
Vendor: Sussex Tool and Supply
$561.79
ISCAR 3346977 0.827" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.1850 106.30MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 0.8268 21.00MM
Type Of Tool Drill
Flute Length 2.9500 74.93MM
Cut Dia Min 0.8268 21.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.8620 21.89MM
