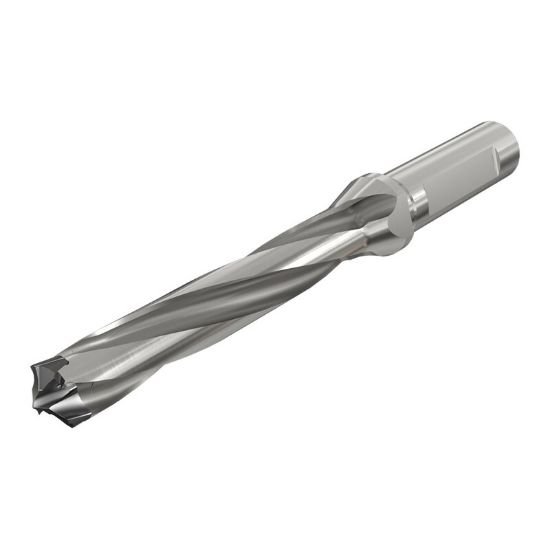

Picture of Iscar D3N 0787-394-100A-5D 0.787" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar D3N 0787-394-100A-5D 0.787" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3346974 ISO: D3N 0787-394-100A-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112137
Vendor: Sussex Tool and Supply
$592.32

Description

ISCAR 3346974 0.787" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 7.7660 197.26MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 0.7874 20.00MM
Flute Length 4.3800 111.25MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.7874 20.00MM
Cut Dia Max 0.8230 20.90MM
Materials & Finish
Tool Material Steel
