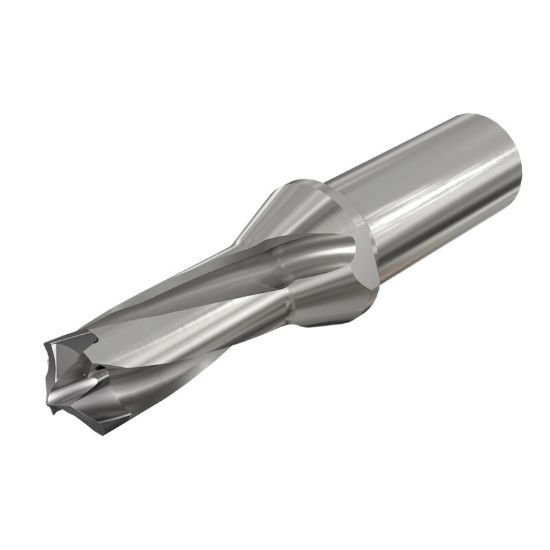

Picture of Iscar D3N 0709-106-100R-1.5D 0.709" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 1.5xD

Iscar D3N 0709-106-100R-1.5D 0.709" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 1.5xD

Part Number: ISC3362953 ISO: D3N 0709-106-100R-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112449
Vendor: Sussex Tool and Supply
$337.42
ISCAR 3362953 0.709" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.7390 120.37MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 1
Tool Dia 0.7087 18.00MM
Type Of Tool Drill
Flute Length 1.4700 37.34MM
Cut Dia Min 0.7087 18.00MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.7440 18.90MM
